SwitchBot Blind Tilt
Key features
Let the light change with your day. Blind Tilt turns the wand on compatible horizontal blinds to adjust the slats. Keep the blinds already fitted to your window and add a schedule for daylight and privacy. The blind mechanism and mounting space are checked first.
Genuine Product
100% Authentic
Warranty
Confirmed with quote
Availability
Enquire before ordering
Expert Support
Mon-Sat Support
Product Description
SwitchBot Blind Tilt
SwitchBot Blind Tilt is a retrofit motor for compatible wand-operated horizontal Venetian blinds. It rotates the tilt wand to change the angle of the slats. It does not lift the blind, pull a cord or drive a roller shade. Start with a photograph of the headrail and wand to assess the fit.
Adjust light without replacing the blind
Schedule the slat angle around morning light or evening privacy, or change it through the app nearby. The light-sensing arrangement can support automatic adjustment after setup. Calibrate the open and closed positions to the actual blind so movement remains within the mechanism’s usable range.

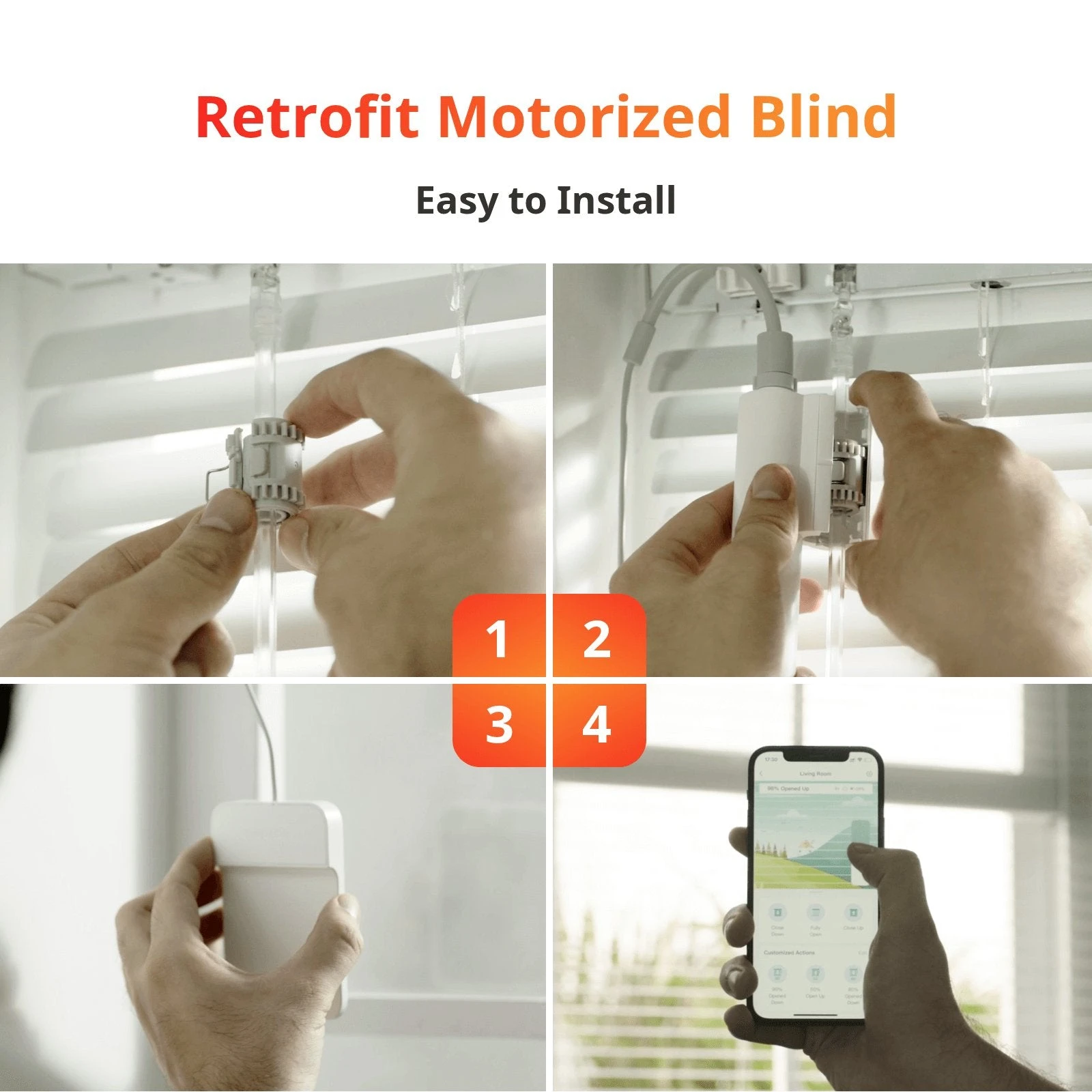

Check the wand and charging position

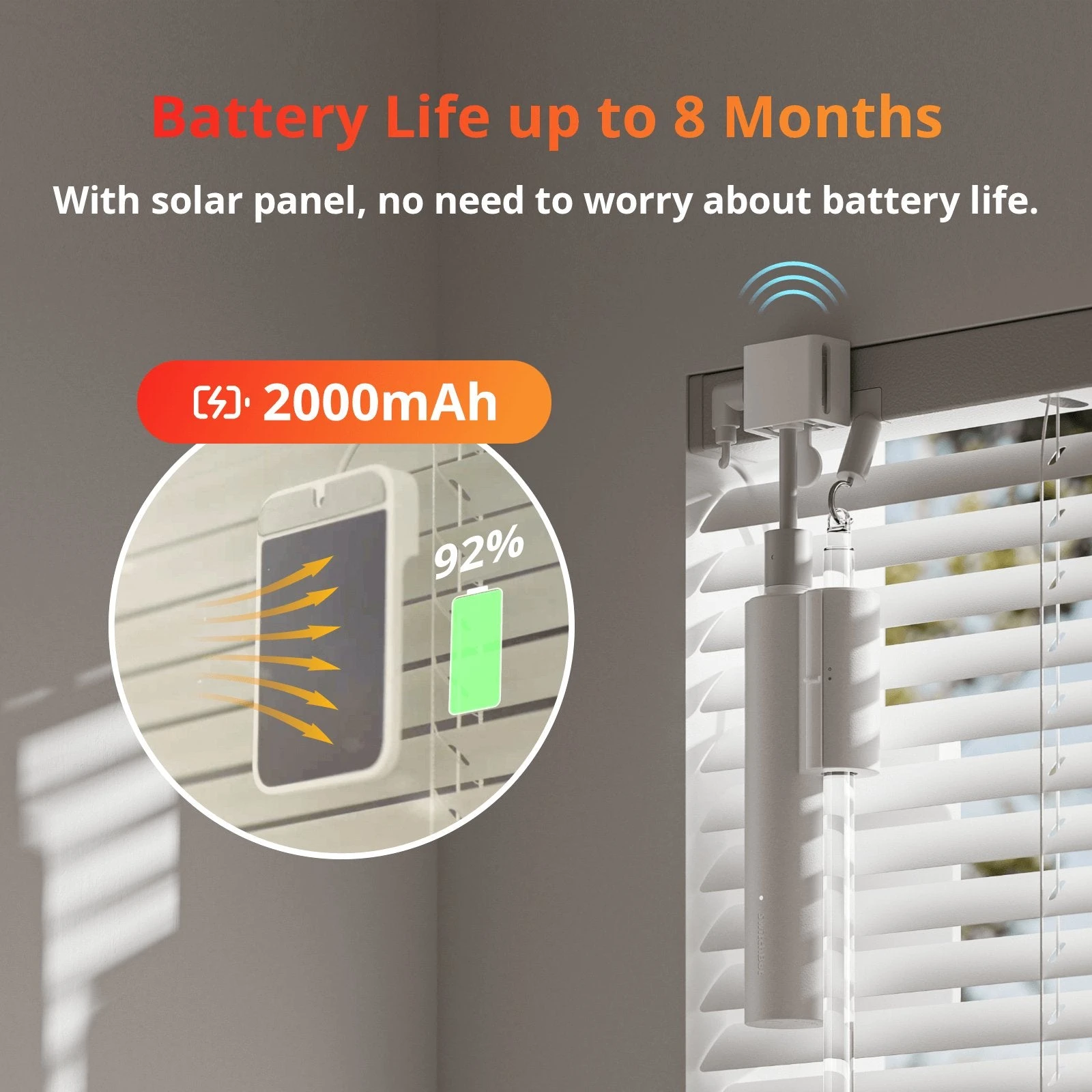

The wand must rotate smoothly and the headrail must offer appropriate mounting space. Follow the connector and installation guide for the wand size and shape. The rechargeable battery uses USB-C power; solar charging depends on panel placement and available sunlight. Confirm the supplied panel and mounting pieces with the quotation.
Choose the right hub for connected control
Nearby Bluetooth control and remote internet operation have different requirements. A compatible SwitchBot hub is needed for supported remote and voice functions. Matter integration requires a compatible Matter-enabled hub, firmware and destination platform; the blind motor is not a standalone Matter or Thread device. Test automations after calibration and retain access for maintenance.
Key specifications
- Protocol: Bluetooth Low Energy 5.0 or later
- Blind type: Compatible wand-operated horizontal Venetian blinds
- Movement: Slat tilt only; does not raise or lower blind
- Dimensions: 48.8 × 29.2 × 144.2 mm
- Weight: 130 g
- Battery: 2000 mAh rechargeable lithium battery
- Charging: USB-C, 5 V DC, 1 A
- Operating modes: Silent and Performance
- Operating temperature: −10°C to 45°C
Frequently asked questions
Can it operate a roller blind?
No. It is designed to turn a compatible Venetian-blind wand, not a roller tube or chain.
Will solar charging remove all charging needs?
That depends on sunlight and use. Keep access to USB-C charging and confirm the panel location during installation.
Availability and enquiries
Out of stock at Smartify. Enquire with your installation details to check sourcing and suitable alternatives. Price, regional version, included accessories, installation scope and warranty coverage will be confirmed with a quote before any order. No stock or delivery date is promised.
Specifications
- Brand
- SwitchBot
- Category
- Curtain Automation
- SKU
- ENQ-SWITCHBOT-BLIND-TILT
- Protocol
- Bluetooth Low Energy 5.0 or later
- Blind type
- Compatible wand-operated horizontal Venetian blinds
- Movement
- Slat tilt only; does not raise or lower blind
- Dimensions
- 48.8 × 29.2 × 144.2 mm
- Weight
- 130 g
- Battery
- 2000 mAh rechargeable lithium battery
- Charging
- USB-C, 5 V DC, 1 A
- Operating modes
- Silent and Performance
- Operating temperature
- −10°C to 45°C
- Warranty
- Confirmed with quote; regional coverage subject to sourcing
- Availability
- Out of stock
