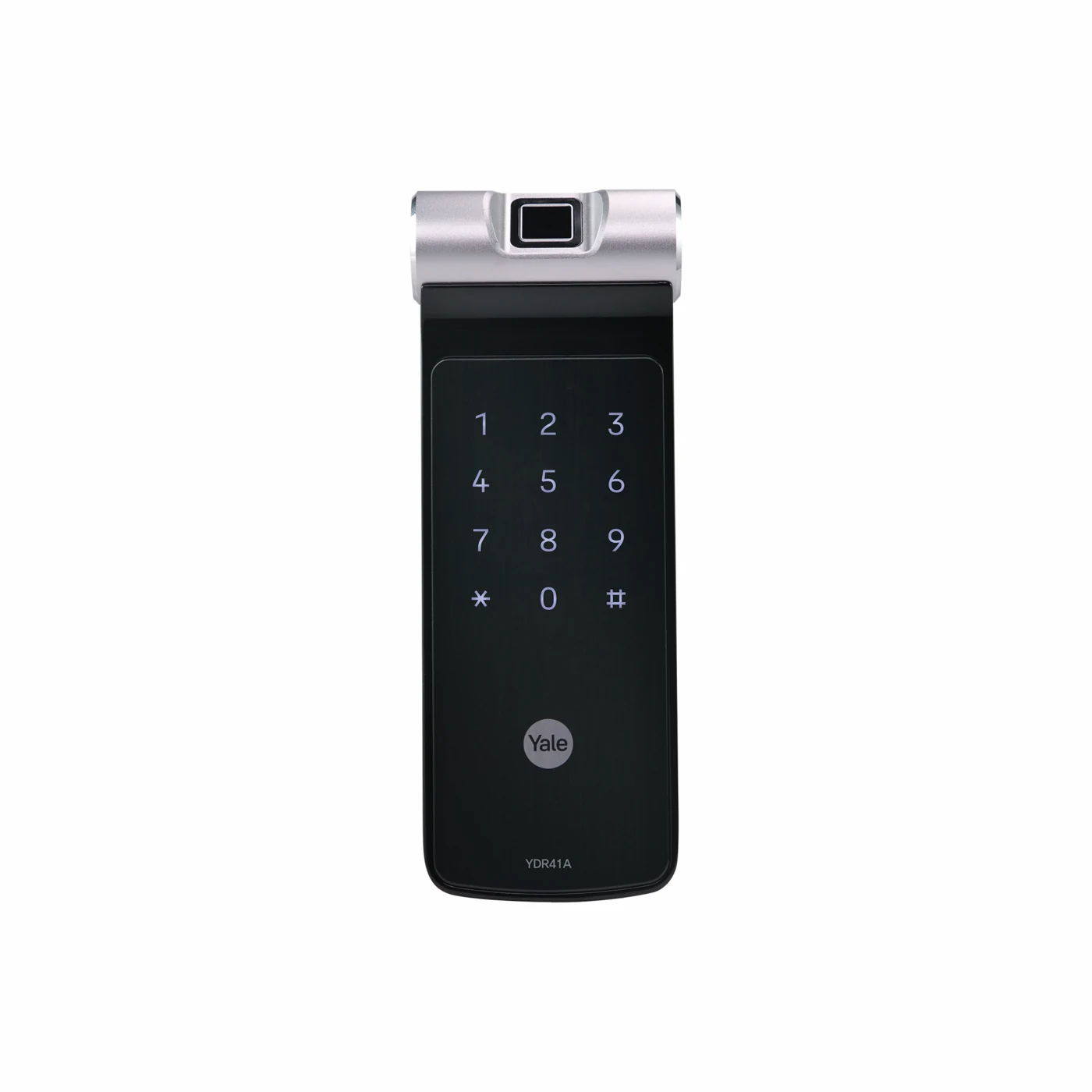

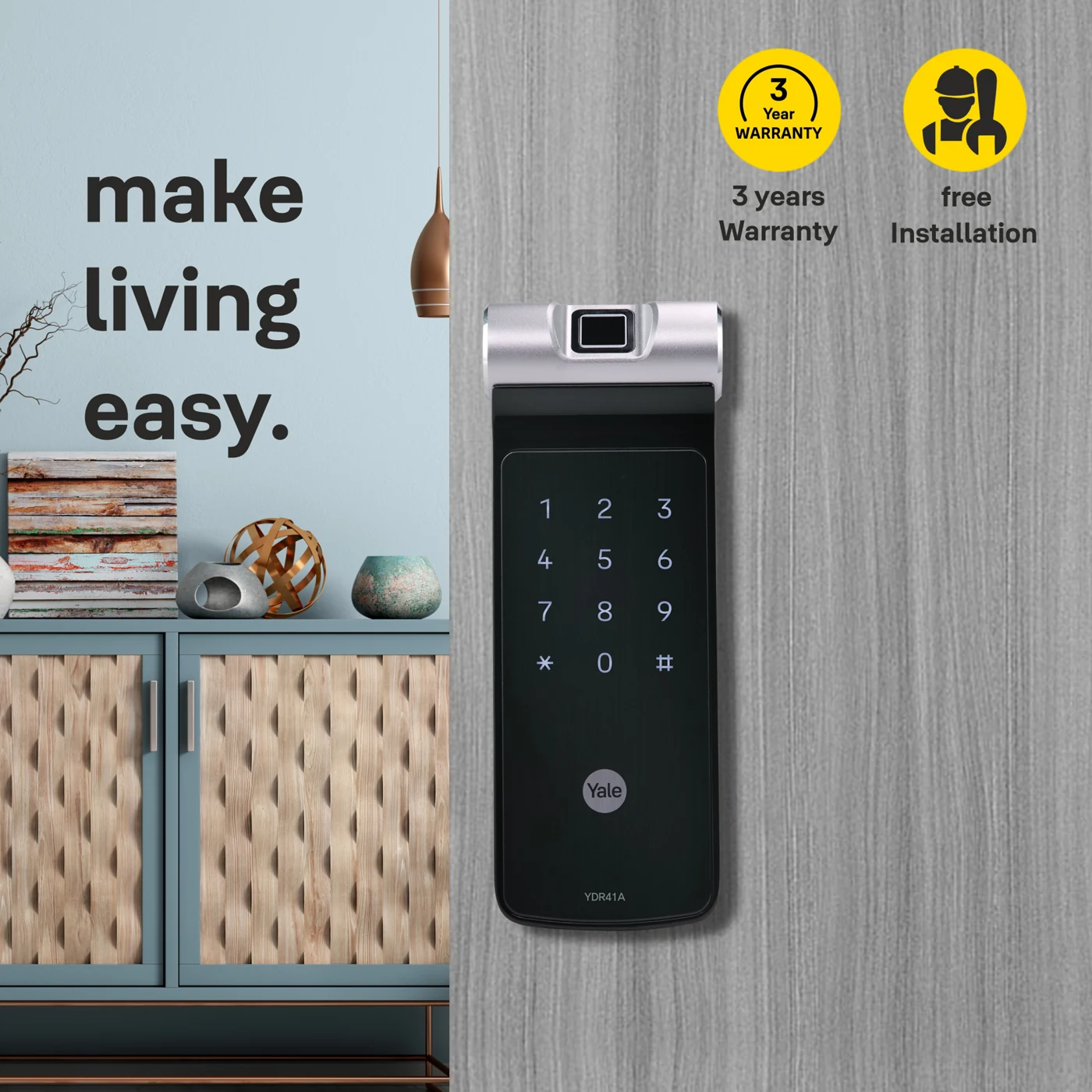

Yale YDR41A

Yale YDR41A

A vertical-bolt format for a different kind of doorway. YDR41A is intended for compatible double, swing or sliding doors, using a bolt that engages the receiving strike vertically. Fingerprint and code access provide local entry, while the appropriate Yale accessories add connected functions. This makes it a relevant alternative when the door configuration is unsuitable for a conventional single-leaf mortise assembly.

Everyday access

Supported access methods: fingerprint; PIN; Yale Home app with kit. Choose the methods that fit the people using this doorway, then demonstrate them during installation. Digital credentials are most useful when residents understand both everyday operation and the backup procedure for their particular lock.

Key features and specifications

• Door thickness: 32–55 mm
• Lock mechanism: Vertical bolt
• Application: Double, swing or sliding doors
• Emergency power: External 9 V battery

Compatibility and installation

Survey the moving leaf, fixed leaf or frame, strike position and closing alignment. Yale Home functions need the suitable Bluetooth module and Wi-Fi bridge. Do not assume compatibility solely because a door slides or has two leaves.

For a replacement project, send photographs of both door faces, the door edge and the frame. Include the thickness, current lock model and the access methods your household wants. These details help distinguish a suitable replacement from a door that needs preparation work.

Set up for the household

Set up the owner account and any required accessories during commissioning, then test the intended local and remote functions separately. Give each regular user an appropriate credential and review access when household arrangements change.

Frequently asked questions

Will it fit my existing door?

A model name and door thickness are not enough to confirm fit. The installer also needs to check the mounting template, available clearances, strike position and the condition of the door and frame. Complete that assessment before modifying the door.

What should be confirmed before ordering?

Confirm the exact Indian-market model, finish, package contents and installation scope. Any required connectivity hardware or optional accessories should be identified in the quotation. Share your preferred access methods so the supplied configuration can be checked against them.

Availability and enquiries

Out of stock at Smartify. Enquire to register your interest or discuss an available alternative. Availability, price, regional version and warranty will be confirmed before any order; no restock date is promised.
