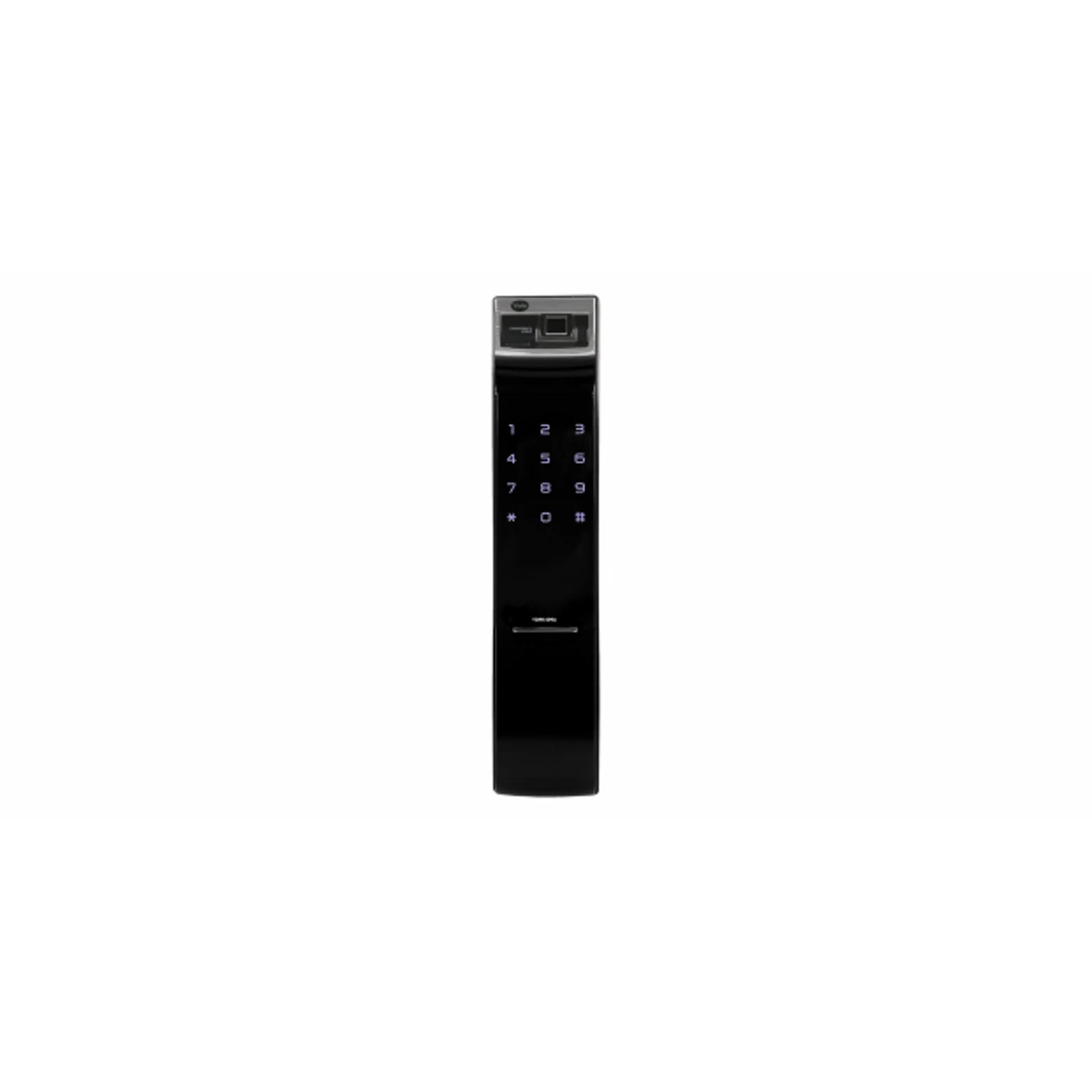

Yale YDM4109A RL

Yale YDM4109A RL

Choose the entrance handle separately. YDM4109A RL uses the roller-latch format so the access-control assembly can be paired with a suitable pull handle selected for the door design. Fingerprint and PIN entry sit alongside mechanical-key override. This is a meaningful installation variant for a door with a long decorative pull, rather than simply another colour of the standard lever model.

Everyday access

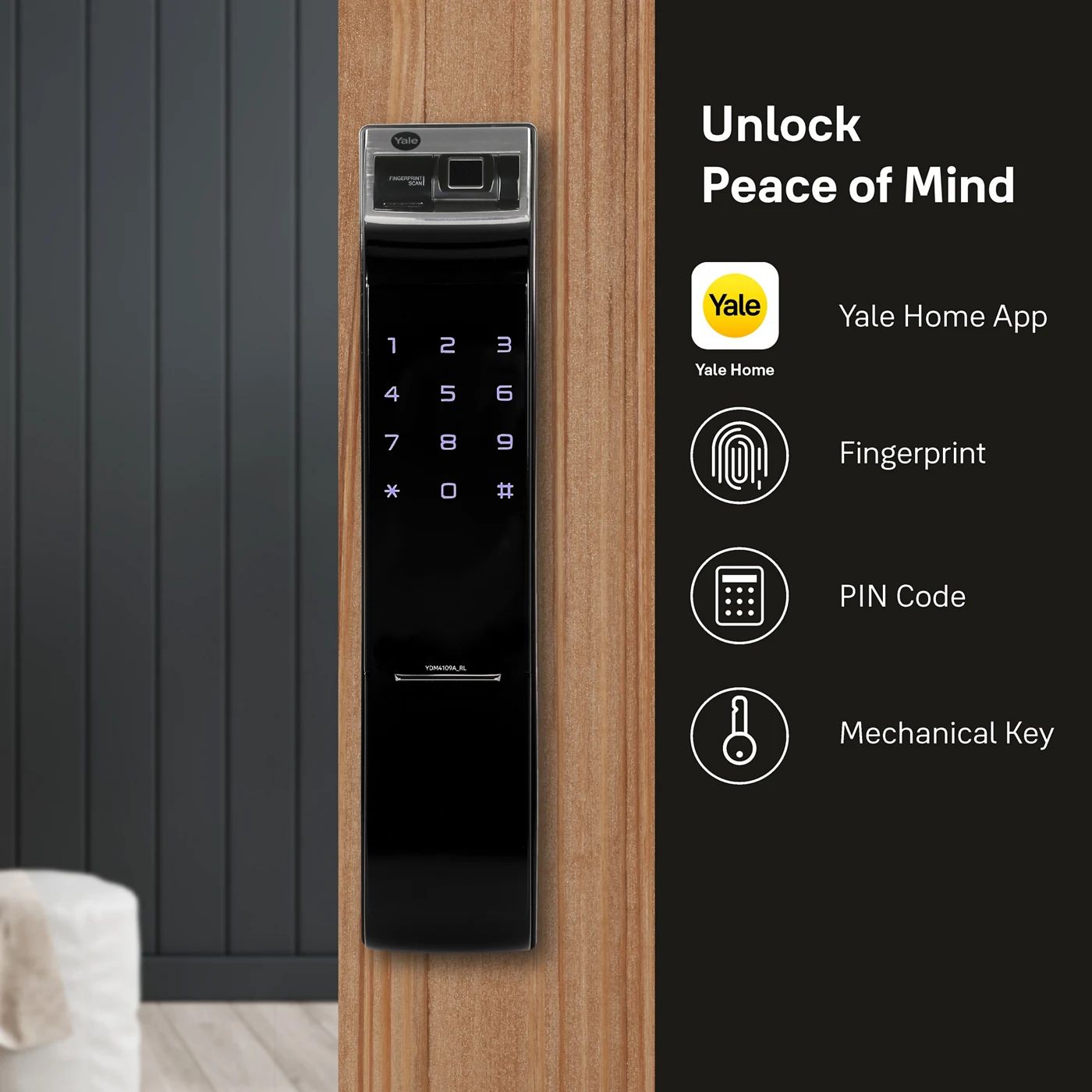

Supported access methods: fingerprint; PIN; mechanical key; Yale Home app with kit. Choose the methods that fit the people using this doorway, then demonstrate them during installation. Digital credentials are most useful when residents understand both everyday operation and the backup procedure for their particular lock.

Key features and specifications

• Door thickness: 40–80 mm (specification table; survey required)
• Backset: 60 mm
• Handle arrangement: Separate pull handle
• Emergency power: External 9 V battery

Compatibility and installation

The pull handle and its mounting clearance need separate assessment. Yale Home control requires the applicable module and bridge. Official prose and table thickness guidance differ; confirm the table’s 40–80 mm range with the exact installation template.

For a replacement project, send photographs of both door faces, the door edge and the frame. Include the thickness, current lock model and the access methods your household wants. These details help distinguish a suitable replacement from a door that needs preparation work.

Set up for the household

Set up the owner account and any required accessories during commissioning, then test the intended local and remote functions separately. Give each regular user an appropriate credential and review access when household arrangements change.

Frequently asked questions

Will it fit my existing door?

A model name and door thickness are not enough to confirm fit. The installer also needs to check the mounting template, available clearances, strike position and the condition of the door and frame. Complete that assessment before modifying the door.

What should be confirmed before ordering?

Confirm the exact Indian-market model, finish, package contents and installation scope. Any required connectivity hardware or optional accessories should be identified in the quotation. Share your preferred access methods so the supplied configuration can be checked against them.

Availability and enquiries

Out of stock at Smartify. Enquire to register your interest or discuss an available alternative. Availability, price, regional version and warranty will be confirmed before any order; no restock date is promised.
