Yale YDL325C

Yale YDL325C

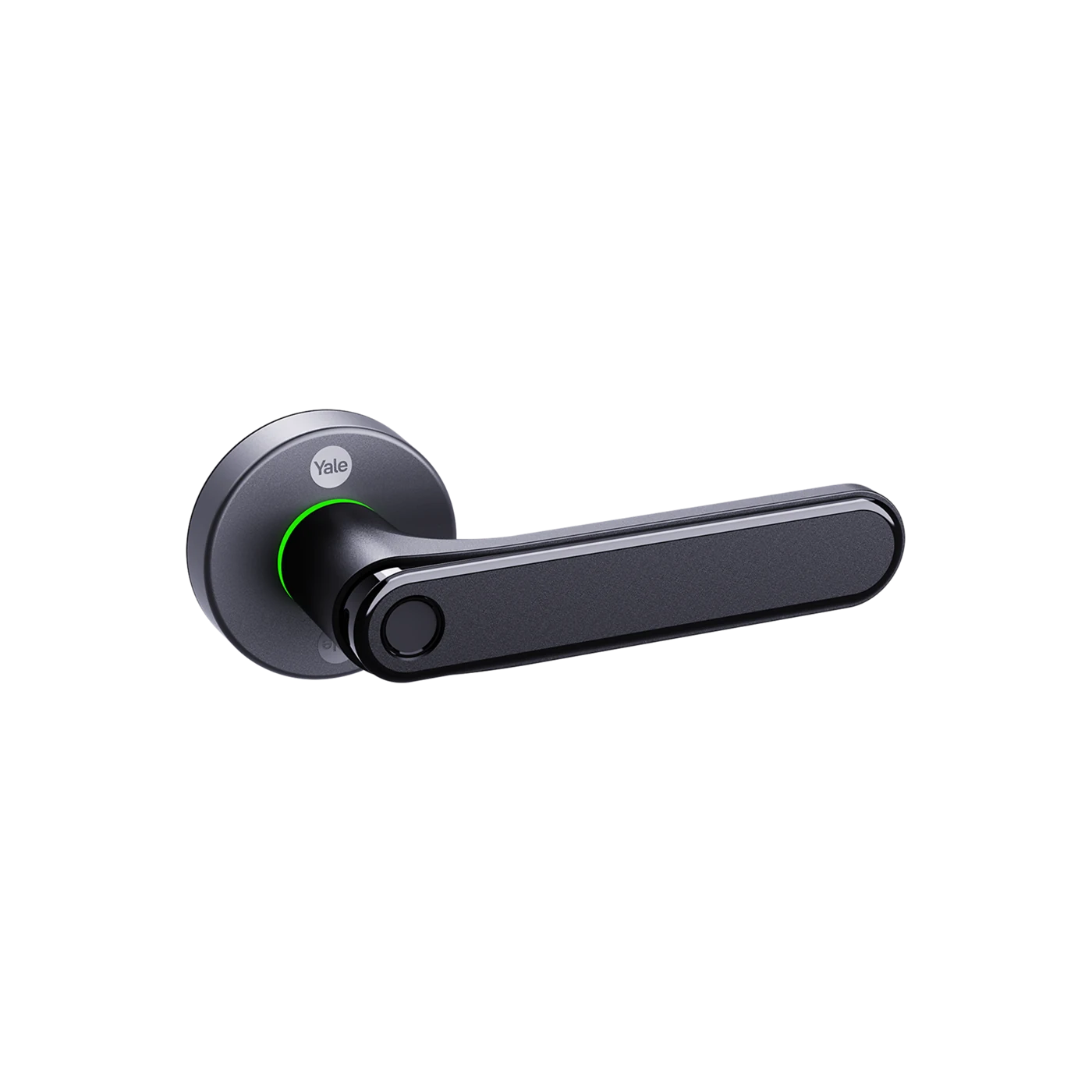

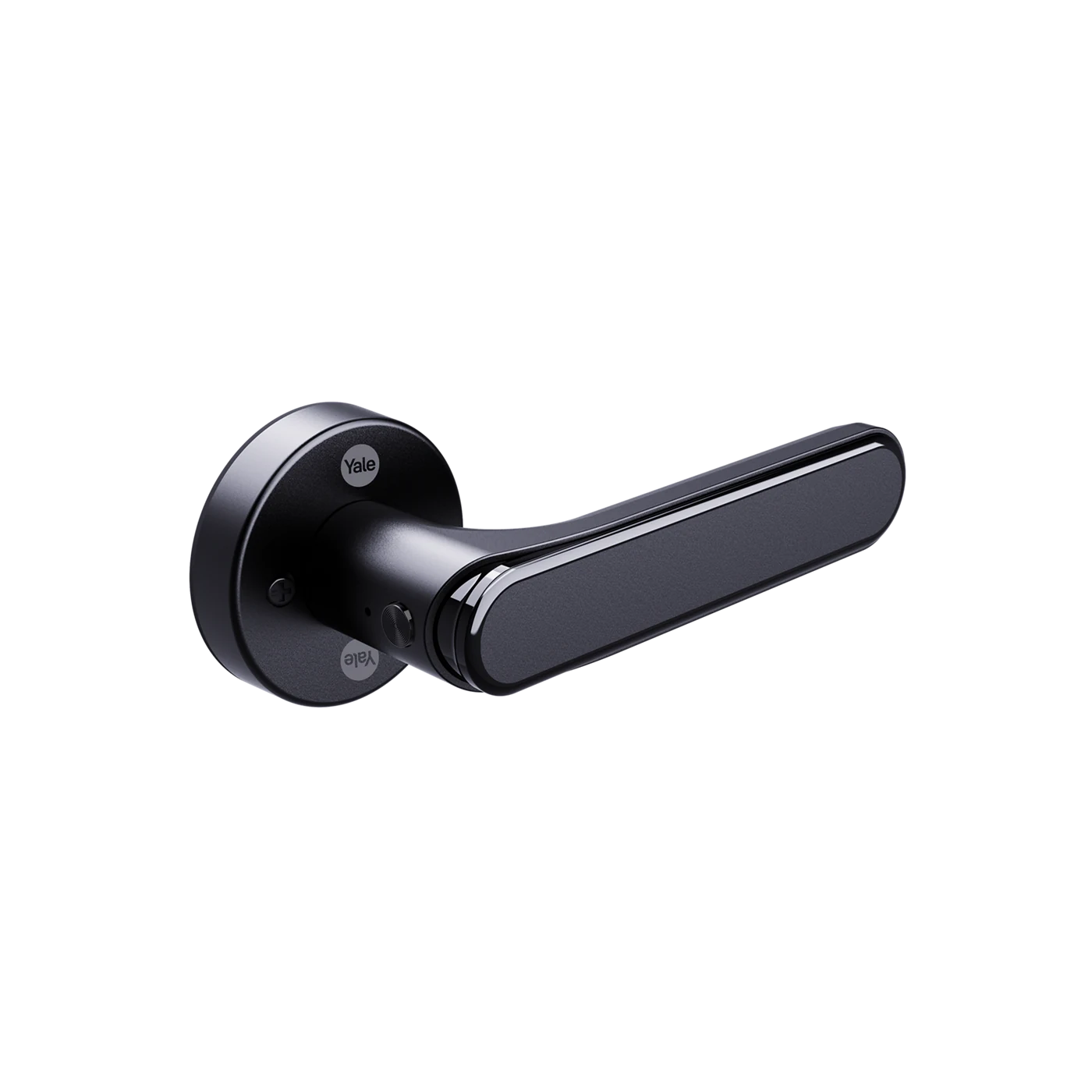

Personal access for the rooms within your home. YDL325C is a smart lever latch intended for interior doors such as a bedroom or study. Its round rose gives the handle a softer outline, while fingerprint entry and built-in Bluetooth bring an alternative to carrying a room key. The internal forced-lock function provides a physical privacy control for the person inside.

Everyday access

Supported access methods: fingerprint; mechanical key; Yale Home app via Bluetooth. Choose the methods that fit the people using this doorway, then demonstrate them during installation. Digital credentials are most useful when residents understand both everyday operation and the backup procedure for their particular lock.

Key features and specifications

• Door thickness: 35–60 mm
• Backset: 60–70 mm
• Battery: 4 × AAA alkaline
• Fingerprint users: Up to 100
• Dimensions: 170 × 68 × 68 mm, front and main body

Compatibility and installation

This interior latch should be selected for its intended room-door use. Existing bore, latch preparation and clearances must match; do not assume a universal no-modification fit. USB-C emergency power is available if batteries are depleted.

For a room-door project, explain which room needs controlled access and who should be able to enter. Include the current latch and handle measurements, and check how privacy and normal exit will work for every occupant.

Set up for the household

Set up the owner account and any required accessories during commissioning, then test the intended local and remote functions separately. Give each regular user an appropriate credential and review access when household arrangements change.

Frequently asked questions

Will it fit my existing door?

A model name and door thickness are not enough to confirm fit. The installer also needs to check the mounting template, available clearances, strike position and the condition of the door and frame. Complete that assessment before modifying the door.

What should be confirmed before ordering?

Confirm the exact Indian-market model, finish, package contents and installation scope. Any required connectivity hardware or optional accessories should be identified in the quotation. Share your preferred access methods so the supplied configuration can be checked against them.

Availability and enquiries

Out of stock at Smartify. Enquire to register your interest or discuss an available alternative. Availability, price, regional version and warranty will be confirmed before any order; no restock date is promised.
