Yale YDG413A

Yale YDG413A

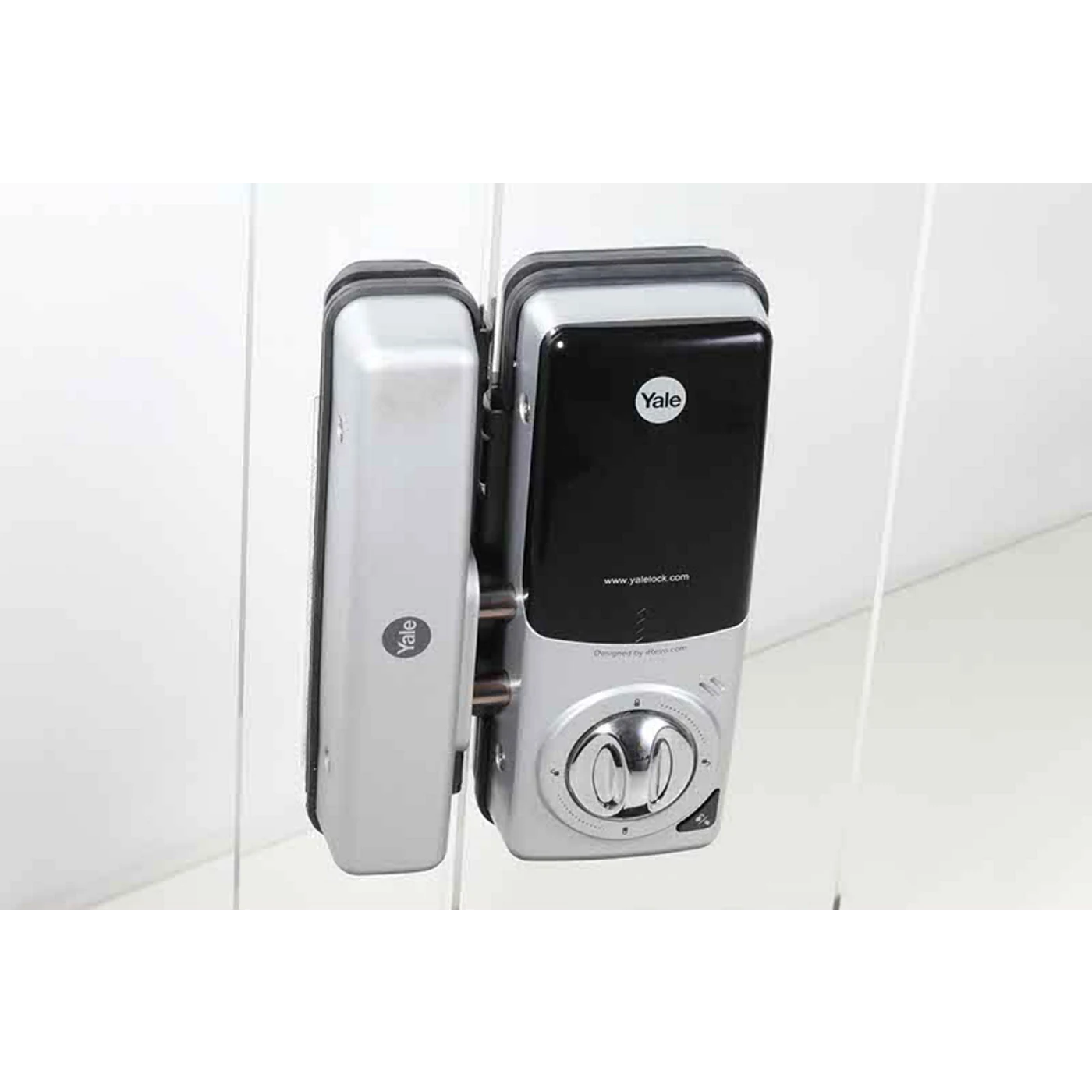

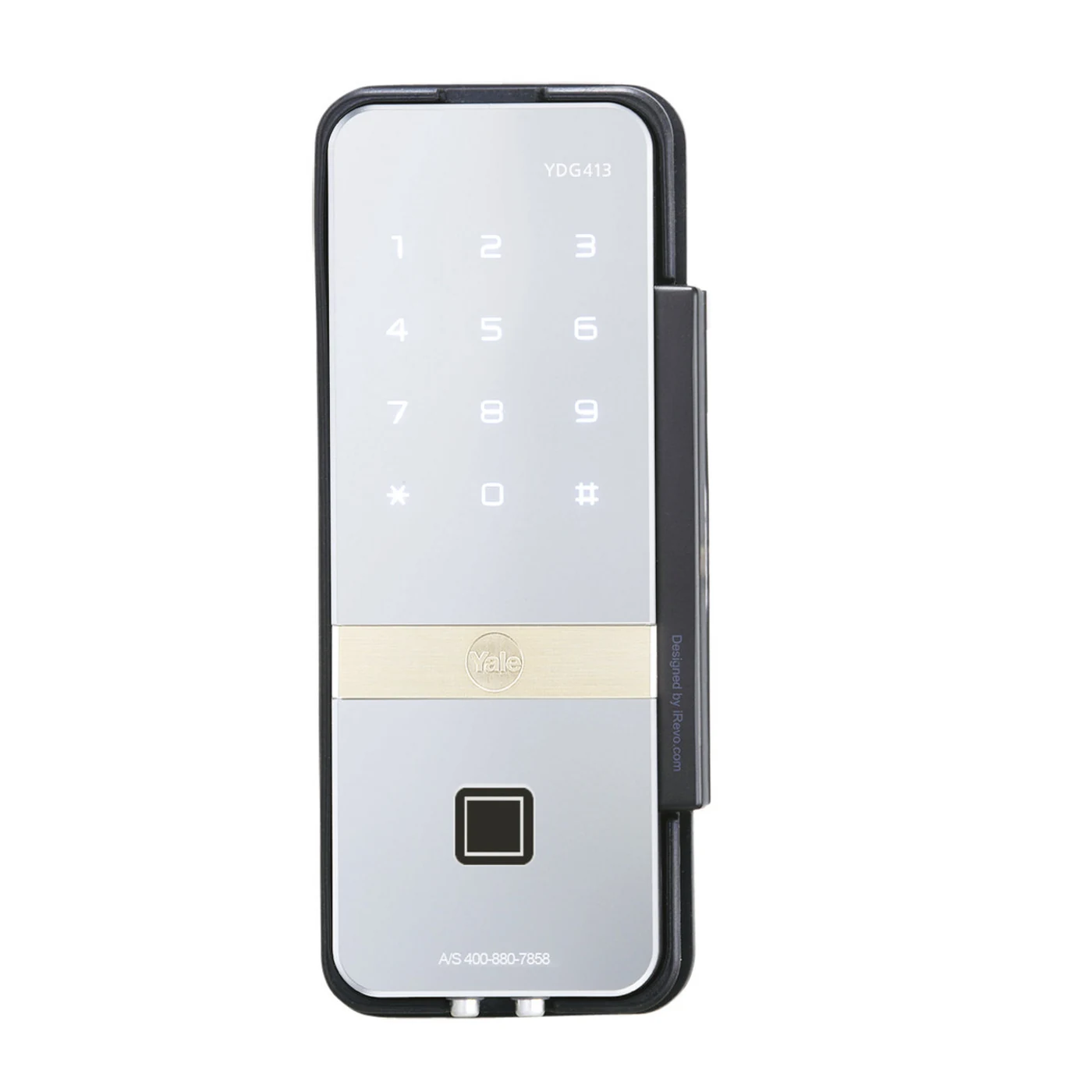

Digital entry designed around glass. YDG413A provides fingerprint and PIN access for compatible glass doors, with a mirrored exterior and a dedicated rim-lock body. It is suitable to consider for a glass entrance where the material and mounting arrangement rule out an ordinary timber-door mortise lock. Its local credentials allow access without treating every doorway as an app-controlled installation.

Everyday access

Supported access methods: fingerprint; PIN; optional remote control. Choose the methods that fit the people using this doorway, then demonstrate them during installation. Digital credentials are most useful when residents understand both everyday operation and the backup procedure for their particular lock.

Key features and specifications

• Door thickness: 9–12 mm glass only
• Fingerprint users: Up to 20
• PIN length: 4–10 digits
• Emergency power: External 9 V battery

Compatibility and installation

Only suitable glass within the specified 9–12 mm range should be assessed. Verify the glass type, existing preparation, single or double-door arrangement and strike solution before installation. Optional remote control does not imply Wi-Fi or general smart-home integration.

For a glass-door project, send the glass thickness and photographs of the opening, fixed panel and existing fittings. Include whether it is a single or double leaf and where the strike can be mounted.

Set up for the household

During commissioning, register the people who need access and test each intended credential at the door. Keep a record of the supplied model and the procedure for changing access, so a future household change does not require guessing at the controls.

Frequently asked questions

Will it fit my existing door?

A model name and door thickness are not enough to confirm fit. The installer also needs to check the mounting template, available clearances, strike position and the condition of the door and frame. Complete that assessment before modifying the door.

What should be confirmed before ordering?

Confirm the exact Indian-market model, finish, package contents and installation scope. Any required connectivity hardware or optional accessories should be identified in the quotation. Share your preferred access methods so the supplied configuration can be checked against them.

Availability and enquiries

Out of stock at Smartify. Enquire to register your interest or discuss an available alternative. Availability, price, regional version and warranty will be confirmed before any order; no restock date is promised.
