Yale YDD724A

Yale YDD724A

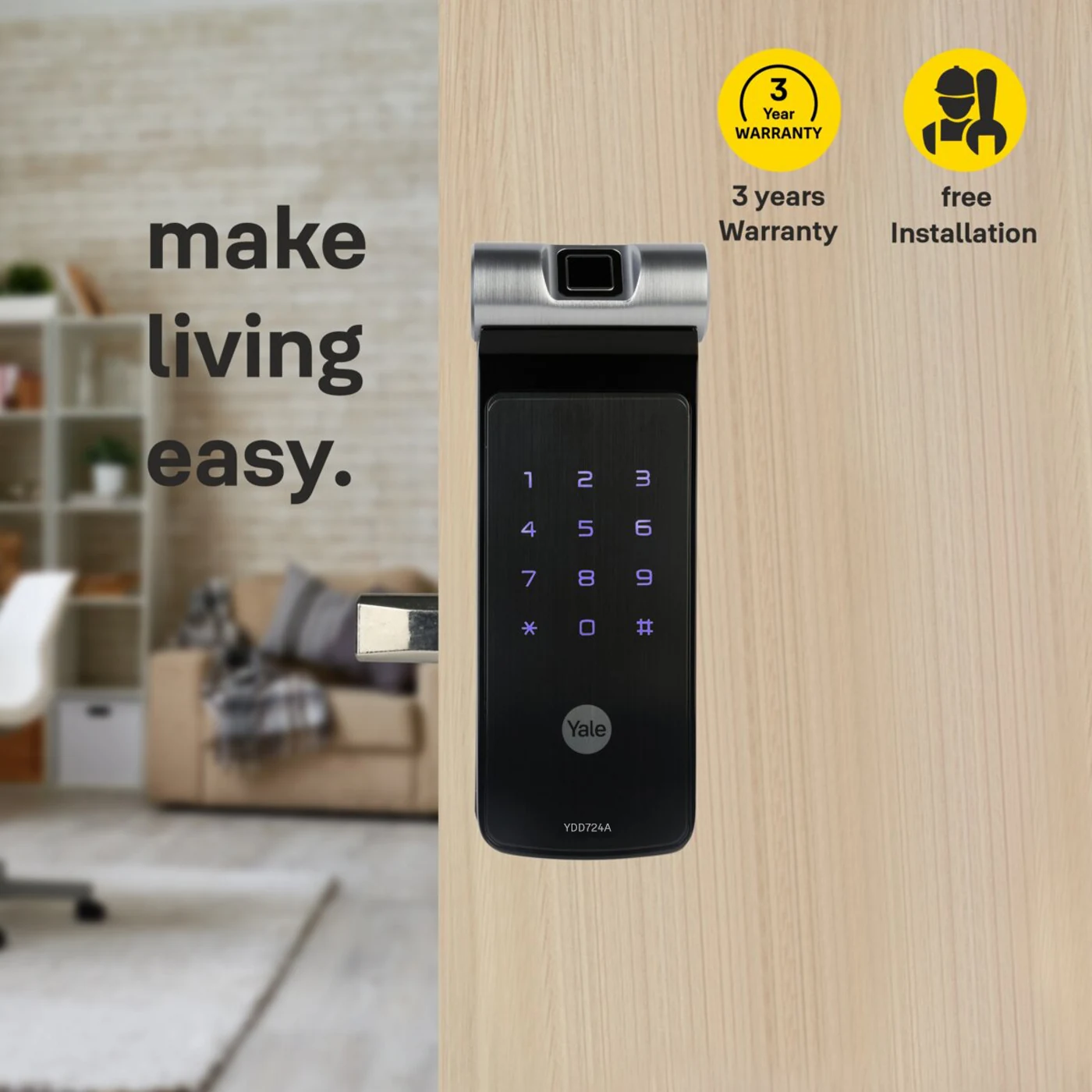

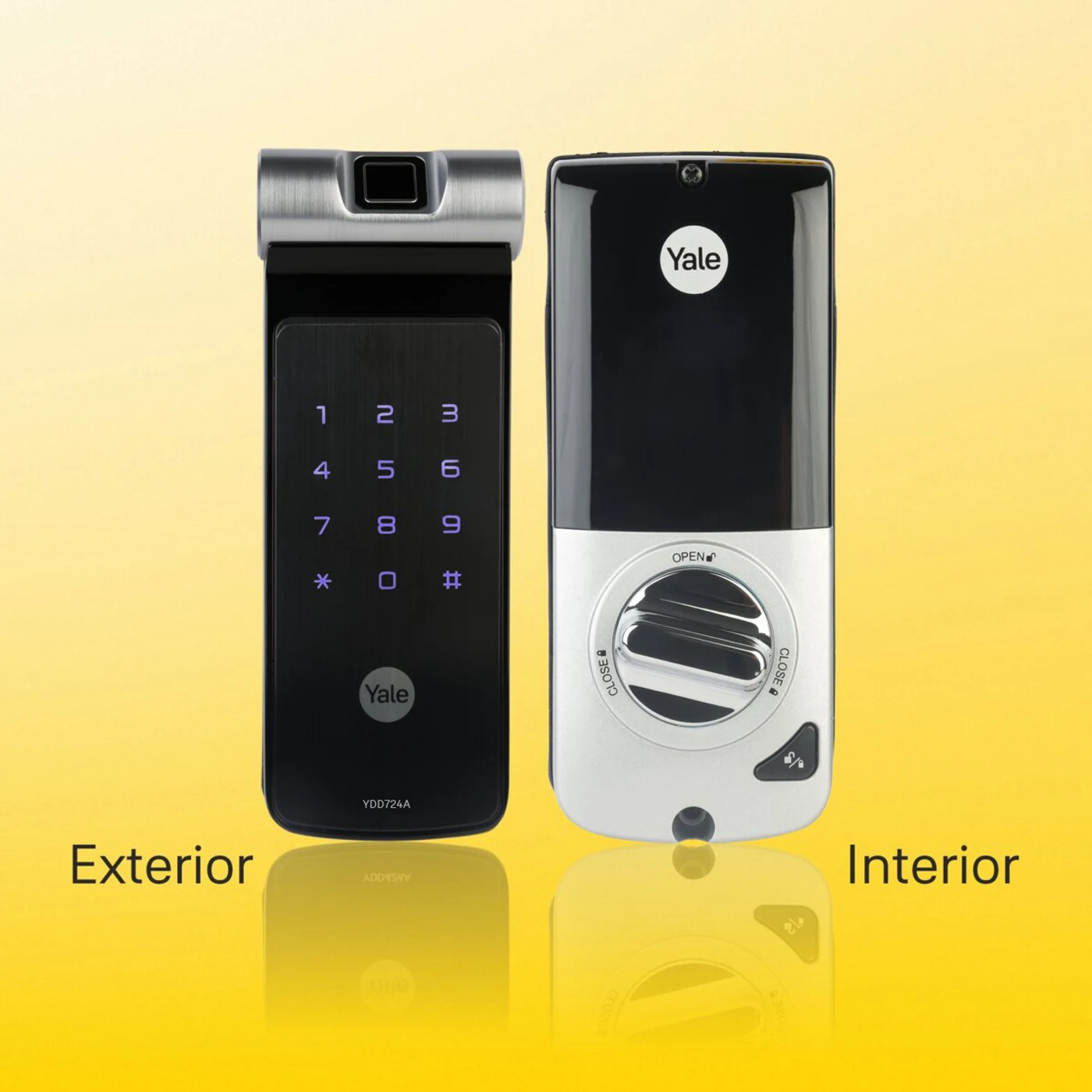

A dedicated digital deadbolt for a suitable wooden door. YDD724A provides fingerprint and keypad access while retaining a mechanical-key option. Its separate deadbolt format is useful to assess when planning a door with an independent pull or lever rather than a single integrated mortise handle. Yale offers optional connected operation, allowing the access plan to be expanded after the correct hardware package is confirmed.

Everyday access

Supported access methods: fingerprint; PIN; mechanical key. Choose the methods that fit the people using this doorway, then demonstrate them during installation. Digital credentials are most useful when residents understand both everyday operation and the backup procedure for their particular lock.

Key features and specifications

• Door thickness: 38–55 mm
• Front dimensions: 66 × 176 × 31.5 mm
• Main dimensions: 70 × 170 × 35 mm
• Mechanical keys: 3 supplied in official specification

Compatibility and installation

Yale Home functions require the separately sold Yale Home kit; remote control is also optional. The source overview mentions RFID but the detailed credential table does not, so RFID capability must be confirmed for the supplied variant and is not promised here.

For a replacement project, send photographs of both door faces, the door edge and the frame. Include the thickness, current lock model and the access methods your household wants. These details help distinguish a suitable replacement from a door that needs preparation work.

Set up for the household

During commissioning, register the people who need access and test each intended credential at the door. Keep a record of the supplied model and the procedure for changing access, so a future household change does not require guessing at the controls.

Frequently asked questions

Will it fit my existing door?

A model name and door thickness are not enough to confirm fit. The installer also needs to check the mounting template, available clearances, strike position and the condition of the door and frame. Complete that assessment before modifying the door.

What should be confirmed before ordering?

Confirm the exact Indian-market model, finish, package contents and installation scope. Any required connectivity hardware or optional accessories should be identified in the quotation. Share your preferred access methods so the supplied configuration can be checked against them.

Availability and enquiries

Out of stock at Smartify. Enquire to register your interest or discuss an available alternative. Availability, price, regional version and warranty will be confirmed before any order; no restock date is promised.
