Yale YDAL Opening Door

Yale YDAL Opening Door

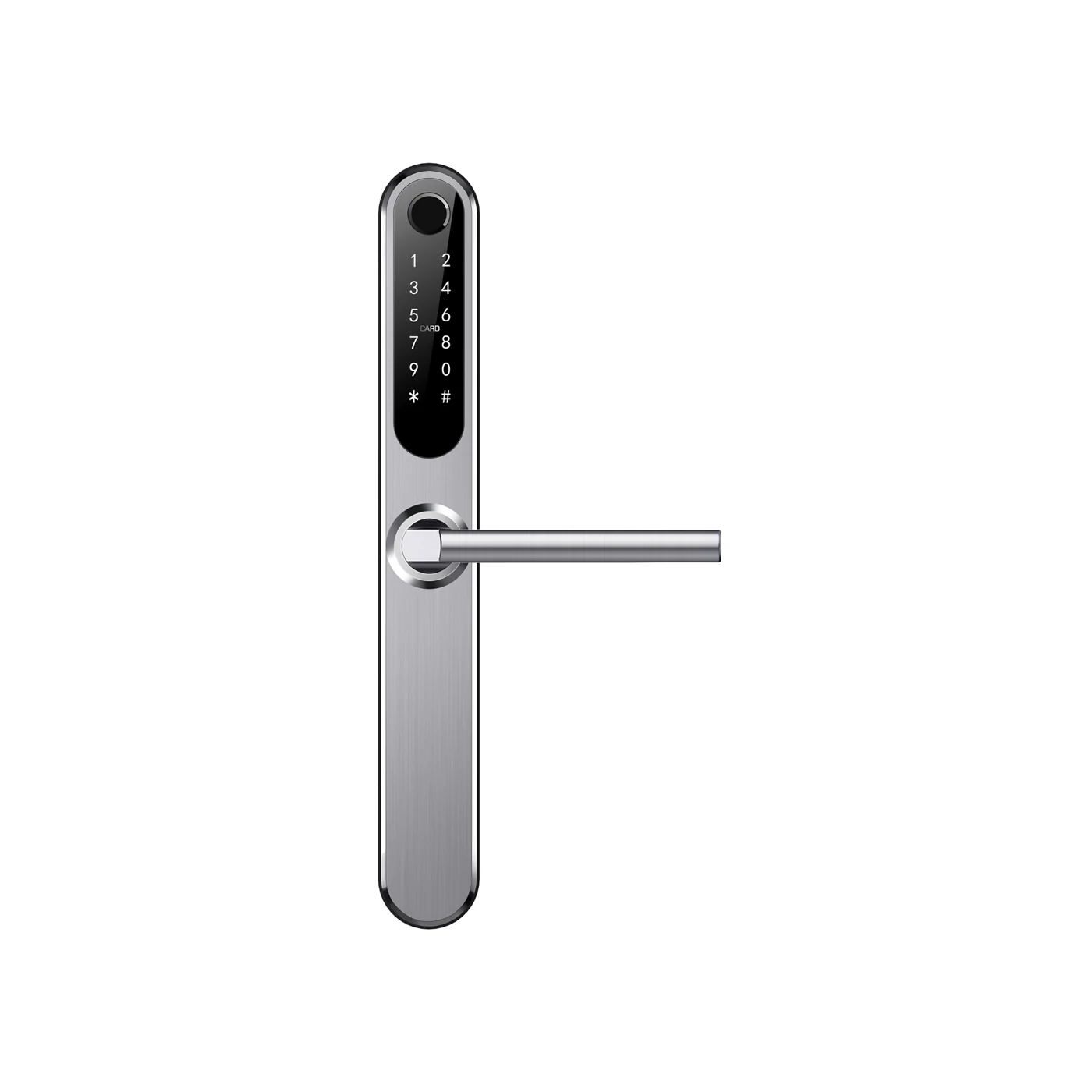

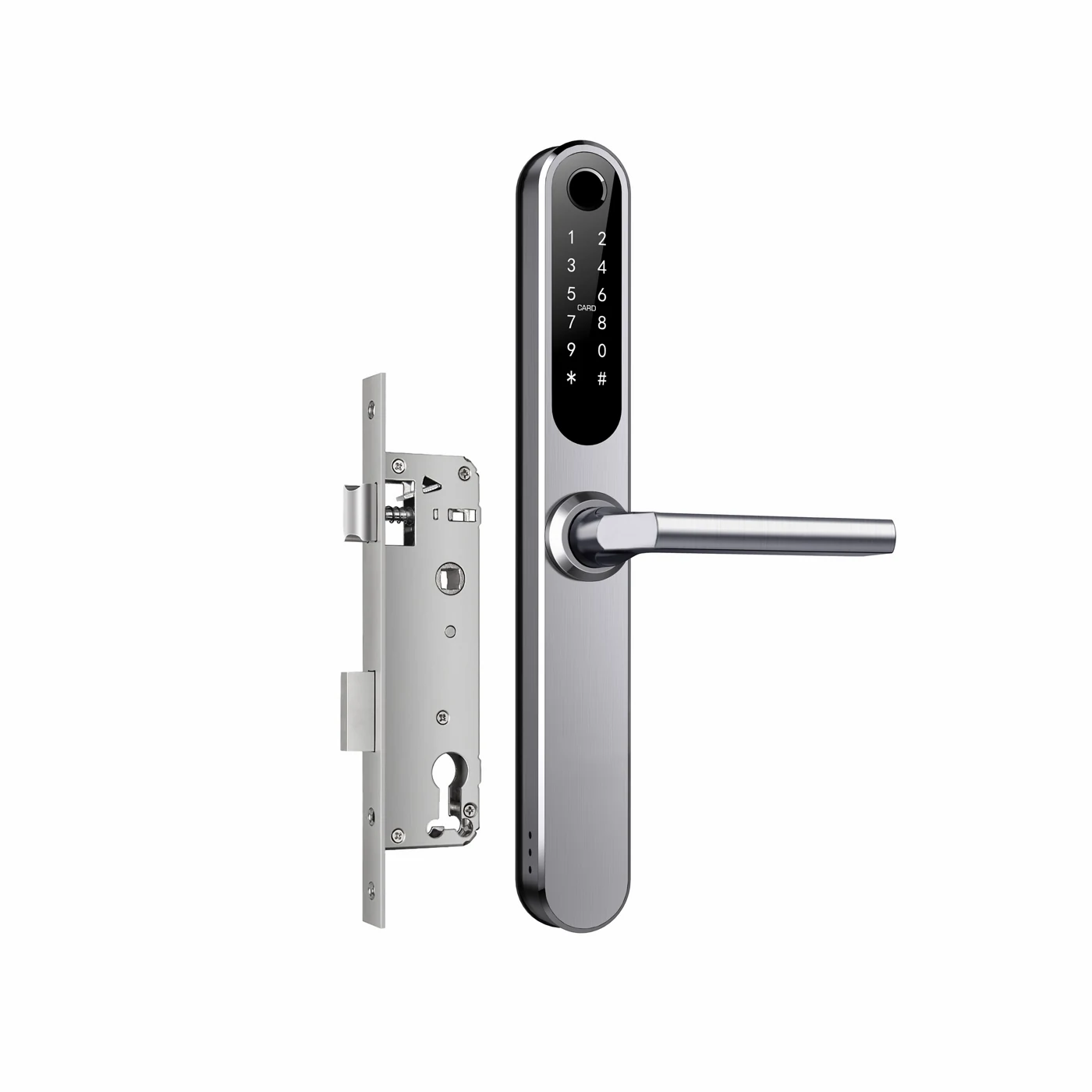

Digital access for a narrow aluminium profile. The YDAL opening-door variant combines fingerprint, PIN, card and key access in a slim 39 mm-wide body. Its 35 mm backset is intended to be assessed with the profile and lockcase space of an appropriate opening door. This family is useful when a standard wide timber-door lock would be an unsuitable starting point for the project.

Everyday access

Supported access methods: fingerprint; PIN; RFID; mechanical key. Choose the methods that fit the people using this doorway, then demonstrate them during installation. Digital credentials are most useful when residents understand both everyday operation and the backup procedure for their particular lock.

Key features and specifications

• Door thickness: 25–65 mm
• Backset: 35 mm
• Battery: 4 × AA alkaline
• Body dimensions: 39 × 310 × 23 mm, front and main
• Finish: Black; Silver

Compatibility and installation

Choose the opening-door variant for the actual door motion; the YDAL sliding version is separate. Confirm internal profile dimensions, lockcase space, frame and strike preparation. Yale lists this in its non-connected range, so app or Wi-Fi control is not promised.

For a replacement project, send photographs of both door faces, the door edge and the frame. Include the thickness, current lock model and the access methods your household wants. These details help distinguish a suitable replacement from a door that needs preparation work.

Set up for the household

During commissioning, register the people who need access and test each intended credential at the door. Keep a record of the supplied model and the procedure for changing access, so a future household change does not require guessing at the controls.

Frequently asked questions

Will it fit my existing door?

A model name and door thickness are not enough to confirm fit. The installer also needs to check the mounting template, available clearances, strike position and the condition of the door and frame. Complete that assessment before modifying the door.

What should be confirmed before ordering?

Confirm the exact Indian-market model, finish, package contents and installation scope. Any required connectivity hardware or optional accessories should be identified in the quotation. Share your preferred access methods so the supplied configuration can be checked against them.

Availability and enquiries

Out of stock at Smartify. Enquire to register your interest or discuss an available alternative. Availability, price, regional version and warranty will be confirmed before any order; no restock date is promised.
