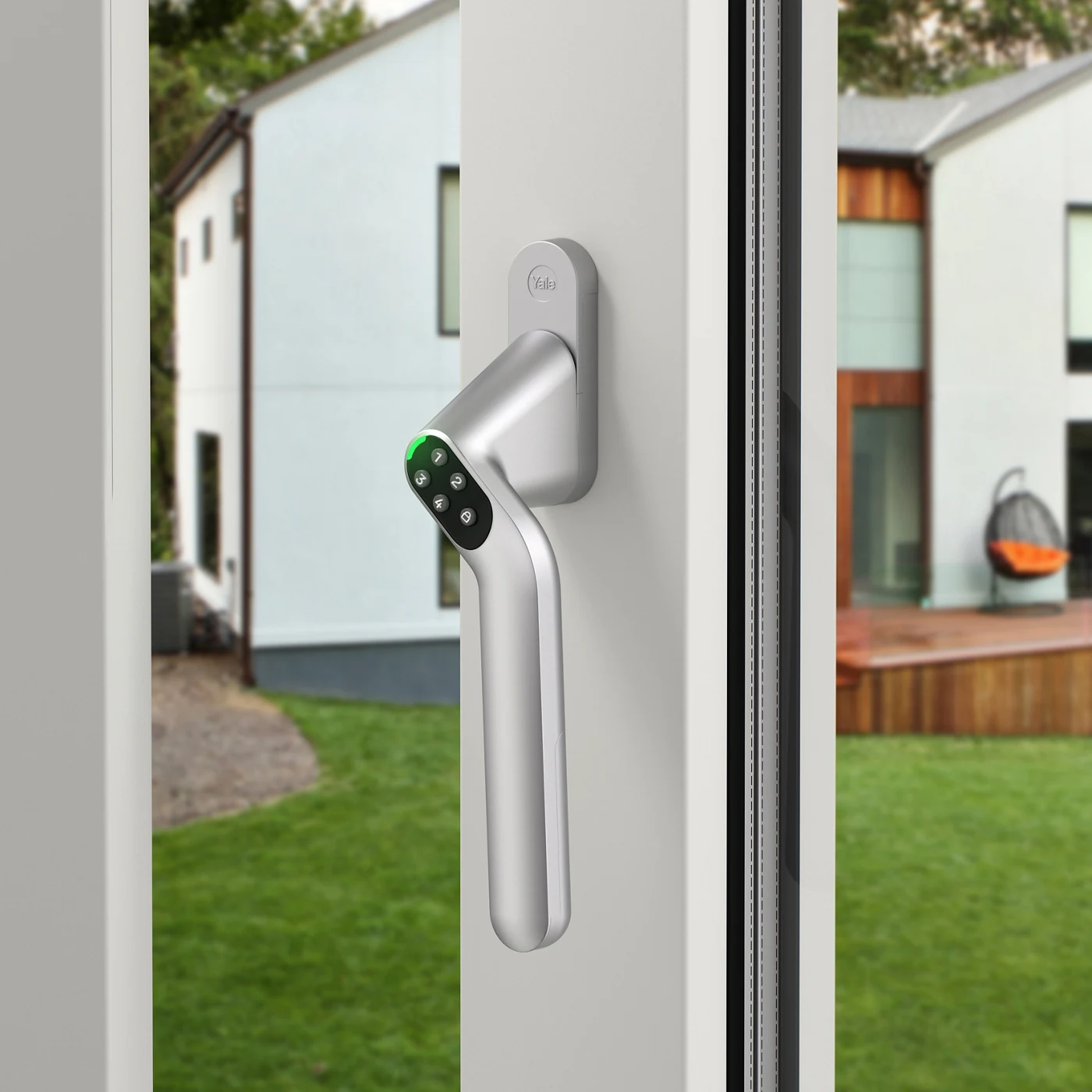

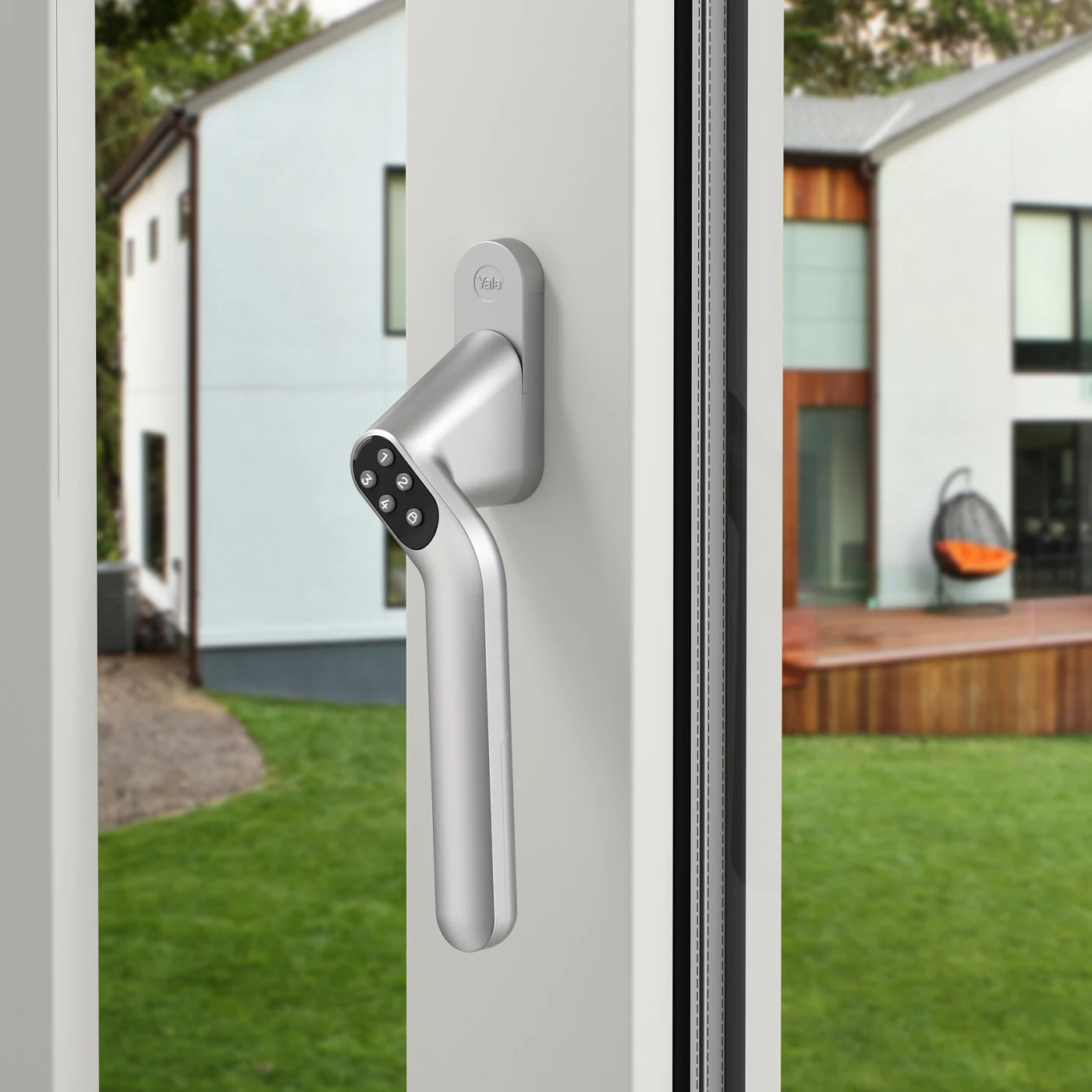

Yale Smart Code Handle

Yale Smart Code Handle

Access control for a patio opening or window. Smart Code Handle replaces a suitable inside handle on UPVC doors and windows, adding code-controlled operation without turning the opening into a front-door mortise lock. It is particularly relevant when a household wants to manage who can operate a terrace or window handle while keeping a direct physical control at the opening.

Everyday access

Supported access methods: PIN; Yale Home app with required accessories. Choose the methods that fit the people using this doorway, then demonstrate them during installation. Digital credentials are most useful when residents understand both everyday operation and the backup procedure for their particular lock.

Key features and specifications

• User codes: Up to four 6-digit codes
• Battery: 2 × AAA alkaline
• Spindles: 7 mm and 8 mm; 53 mm and 100 mm lengths
• Operating environment: Indoor; 0–50°C; avoid high humidity
• Finish: Satin chrome

Compatibility and installation

For inside installation on compatible UPVC windows and doors with 90° or 180° handle travel and no latch bolt. Confirm spindle and fixing measurements. Yale specifies a Yale Home kit for app functions and a Connect Wi-Fi Bridge for remote operation; confirm the exact package.

For a replacement project, send photographs of both door faces, the door edge and the frame. Include the thickness, current lock model and the access methods your household wants. These details help distinguish a suitable replacement from a door that needs preparation work.

Set up for the household

Set up the owner account and any required accessories during commissioning, then test the intended local and remote functions separately. Give each regular user an appropriate credential and review access when household arrangements change.

Frequently asked questions

Will it fit my existing door?

A model name and door thickness are not enough to confirm fit. The installer also needs to check the mounting template, available clearances, strike position and the condition of the door and frame. Complete that assessment before modifying the door.

What should be confirmed before ordering?

Confirm the exact Indian-market model, finish, package contents and installation scope. Any required connectivity hardware or optional accessories should be identified in the quotation. Share your preferred access methods so the supplied configuration can be checked against them.

Availability and enquiries

Out of stock at Smartify. Enquire to register your interest or discuss an available alternative. Availability, price, regional version and warranty will be confirmed before any order; no restock date is promised.
