Yale Reflecta PIN

Yale Reflecta PIN

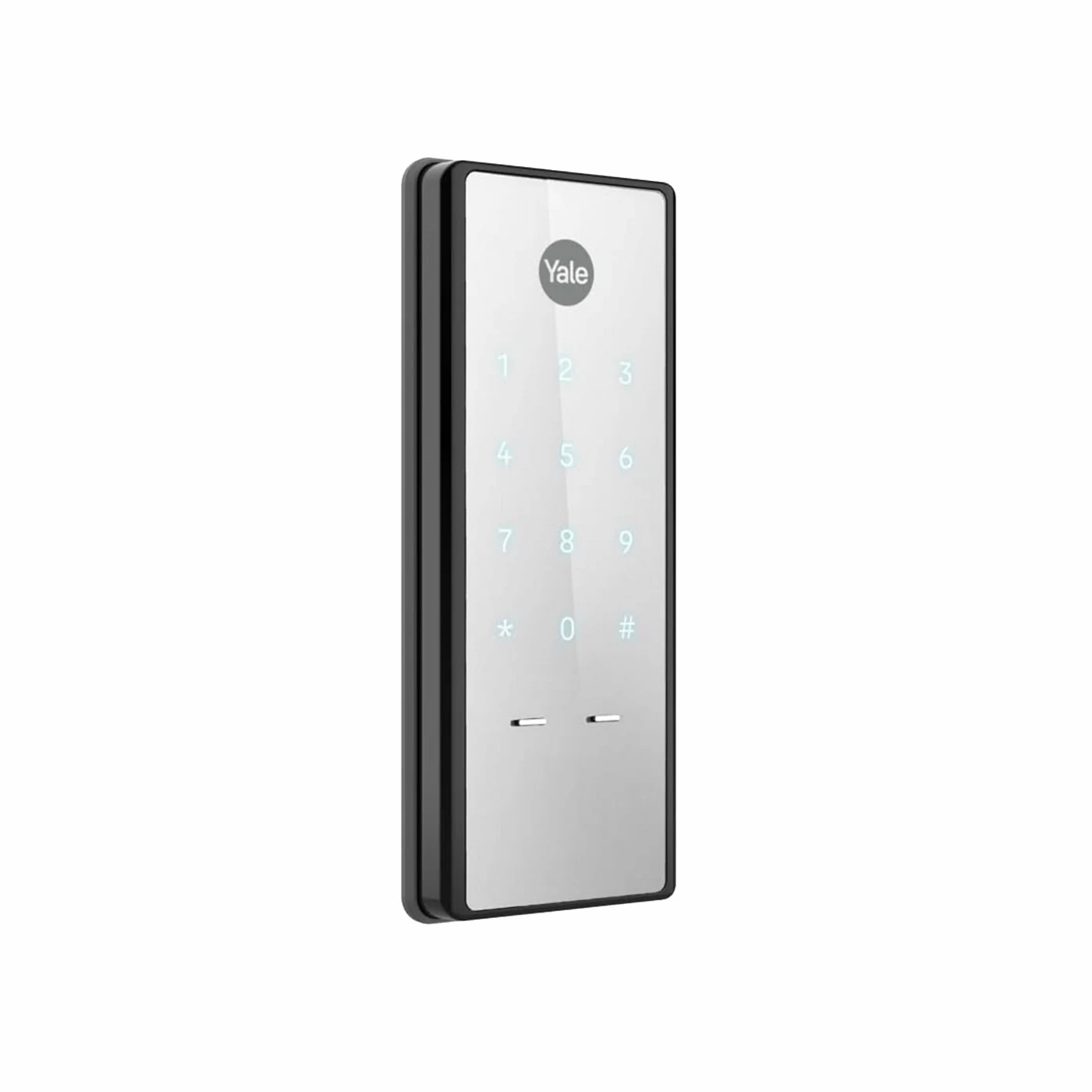

A code at the door, with a clean mirrored finish. Reflecta PIN is a standalone rim lock for users who want straightforward keypad access. Its published capacity of up to 30 PIN codes makes it possible to plan separate access credentials without adding a phone workflow to everyday arrivals. The compact exterior and surface-mounted inner body should be assessed against the existing door and frame.

Everyday access

Supported access methods: PIN. Choose the methods that fit the people using this doorway, then demonstrate them during installation. Digital credentials are most useful when residents understand both everyday operation and the backup procedure for their particular lock.

Key features and specifications

• Door thickness: 30–50 mm
• User PIN codes: Up to 30
• Battery: 4 × AA alkaline
• Emergency power: External 9 V battery
• Finish: Mirror

Compatibility and installation

This is the PIN-only Reflecta, without a promised fingerprint reader or app connection. Check the 30–50 mm door range, receiving strike and available inner mounting area. Emergency external power is a temporary access provision, not a replacement for fresh batteries.

For a replacement project, send photographs of both door faces, the door edge and the frame. Include the thickness, current lock model and the access methods your household wants. These details help distinguish a suitable replacement from a door that needs preparation work.

Set up for the household

During commissioning, register the people who need access and test each intended credential at the door. Keep a record of the supplied model and the procedure for changing access, so a future household change does not require guessing at the controls.

Frequently asked questions

Will it fit my existing door?

A model name and door thickness are not enough to confirm fit. The installer also needs to check the mounting template, available clearances, strike position and the condition of the door and frame. Complete that assessment before modifying the door.

What should be confirmed before ordering?

Confirm the exact Indian-market model, finish, package contents and installation scope. Any required connectivity hardware or optional accessories should be identified in the quotation. Share your preferred access methods so the supplied configuration can be checked against them.

Availability and enquiries

Out of stock at Smartify. Enquire to register your interest or discuss an available alternative. Availability, price, regional version and warranty will be confirmed before any order; no restock date is promised.
