SONOFF ZBMINIR2

SONOFF ZBMINIR2

A compact retrofit for an existing circuit

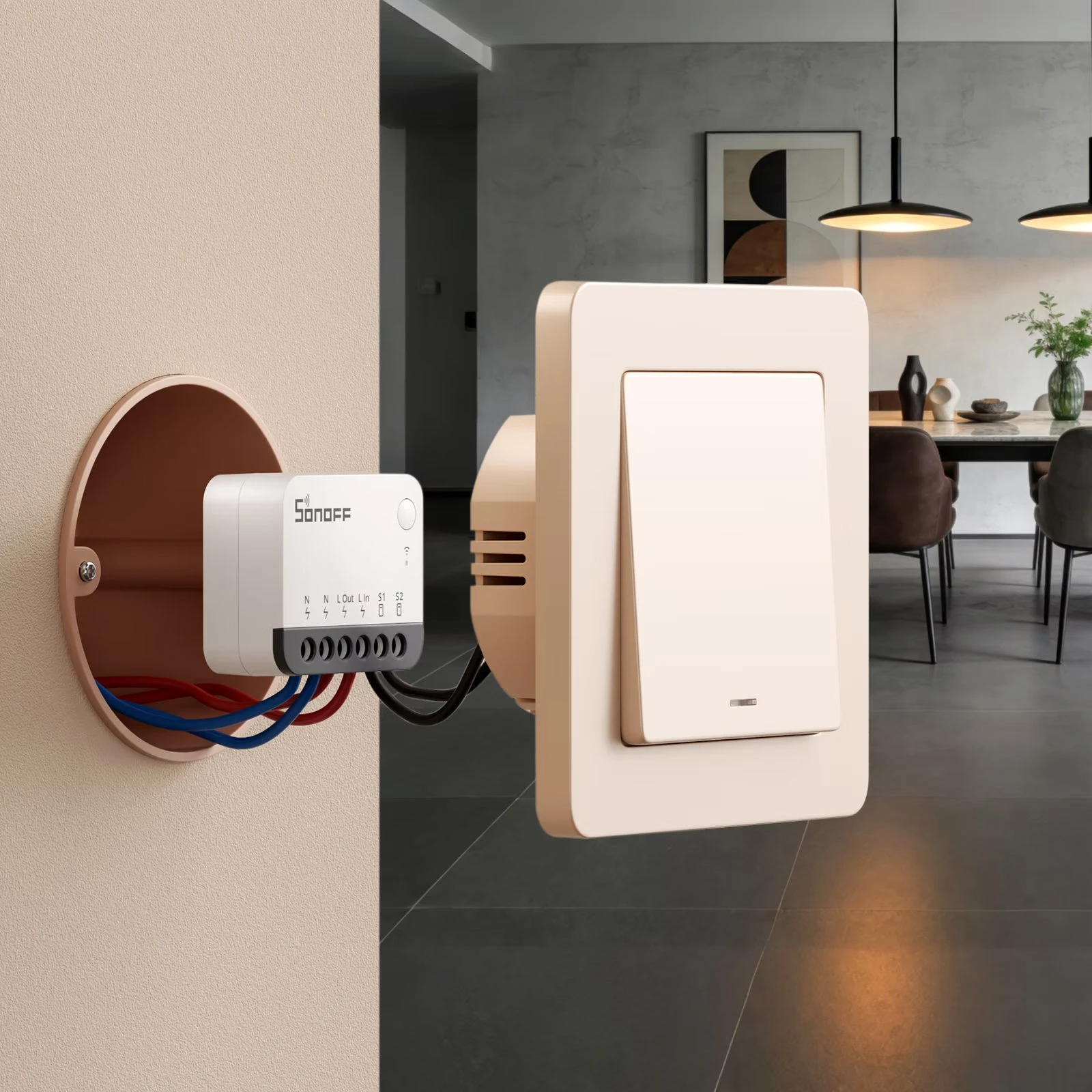

ZBMINIR2 is a single-channel Zigbee relay designed for concealed installation in a suitable mounting box. It connects to an external rocker switch or push button, so normal wall control can remain part of everyday use. A compatible automation system can add timed switching, group control or sensor-driven scenes after commissioning.

Build on a Zigbee network

The module needs a compatible Zigbee hub or coordinator. SONOFF lists integration routes through its gateways and Home Assistant using ZHA or Zigbee2MQTT with suitable coordinator hardware. It also acts as a Zigbee router, helping relay traffic within the mesh. Feature availability, remote access and voice control depend on the selected hub and integration; a Zigbee logo alone does not guarantee every advanced setting is exposed.

Check neutral and circuit protection first

This exact model requires both live and neutral. It is not the no-neutral ZBMINIL2. Its 10 A rating is for resistive loads, so drivers, motors and other inrush-heavy loads need a separate assessment. A qualified electrician should confirm enclosure space, conductor routing and an upstream 10 A MCB or RCBO as specified by the manufacturer. Switch-input terminals must be wired only as directed in the manual.

Key specifications

• Model: ZBMINIR2
• Channels: 1
• Protocol: Zigbee 3.0
• Supply: 100–240 V AC, 50/60 Hz
• Maximum load: 10 A resistive
• Neutral: Required
• Network role: Zigbee router / repeater
• Dimensions: 39.5 × 33 × 16.8 mm
• Operating temperature: −10°C to 40°C
• Warranty: Confirmed with quote; regional coverage subject to sourcing

Frequently asked questions

Will it connect straight to a Wi-Fi router?

No. Its control network is Zigbee. A compatible hub or coordinator is needed to connect it to the wider smart-home system.

Does it measure electricity use?

This listing is for on/off control and Zigbee routing. It does not include an energy-metering claim; choose a metering relay when consumption reporting is required.

Availability and enquiries

Out of stock at Smartify. Enquire to register interest or discuss an available alternative. Availability, price, regional version and warranty will be confirmed before any order; no restock date is promised.
