SONOFF NSPanel Pro 120

SONOFF NSPanel Pro 120

Everyday control within reach

SONOFF NSPanel Pro 120 gives a connected home a shared place for everyday control. Its portrait touchscreen suits a hallway, living space or other convenient location where family members can reach supported devices and scenes. A fixed panel can also make a planned automation easier to understand: the controls remain available in the same place instead of depending on whichever phone happens to be nearby.

Plan the devices around the panel

The built-in Zigbee hub supports compatible sub-devices, while the eWeLink interface brings selected functions together on screen. Camera viewing, energy information and climate controls depend on the devices connected to the system; the panel itself does not measure circuit consumption or replace the equipment that switches a load. Check SONOFF’s current supported-device list before specifying third-party accessories.

Home Assistant and installation

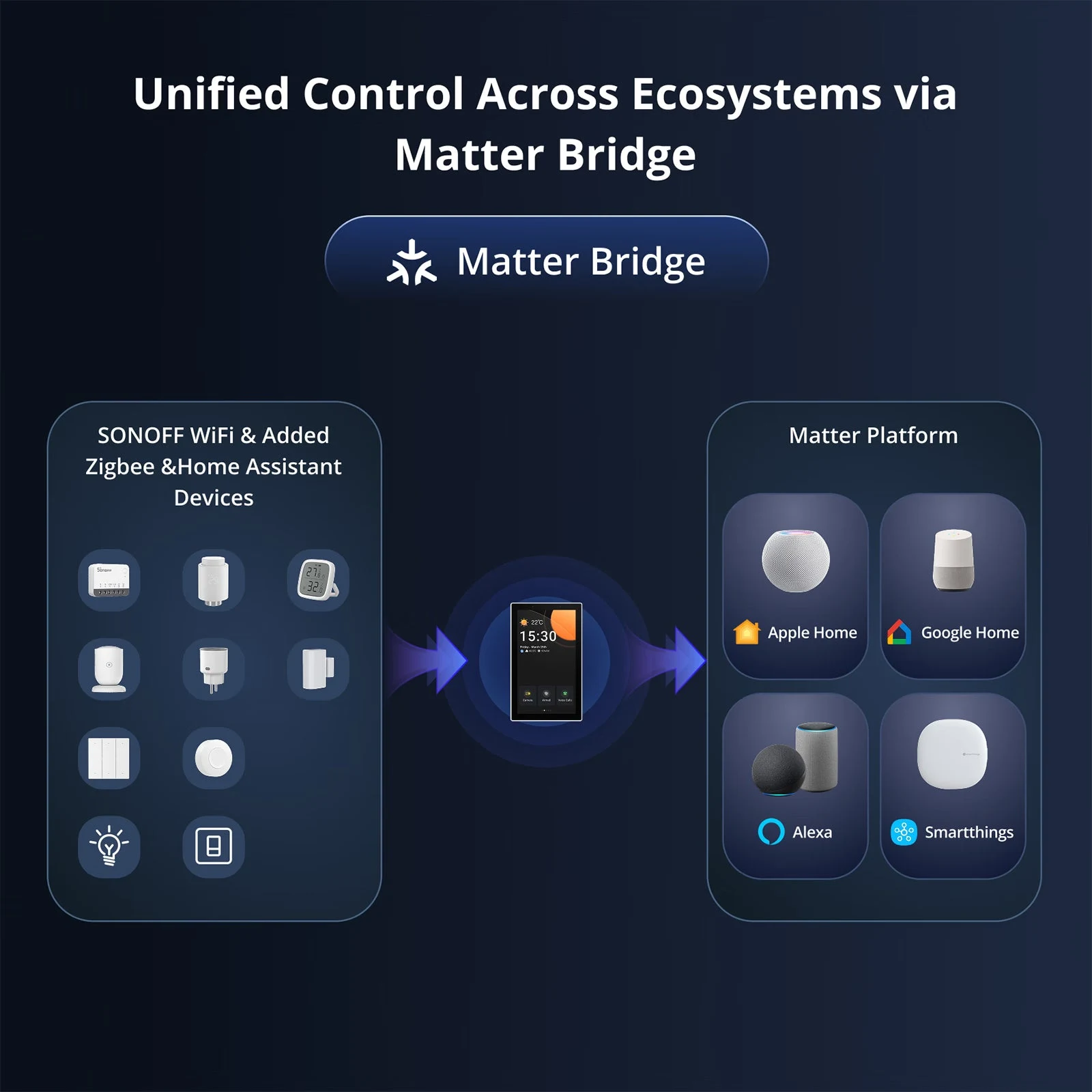

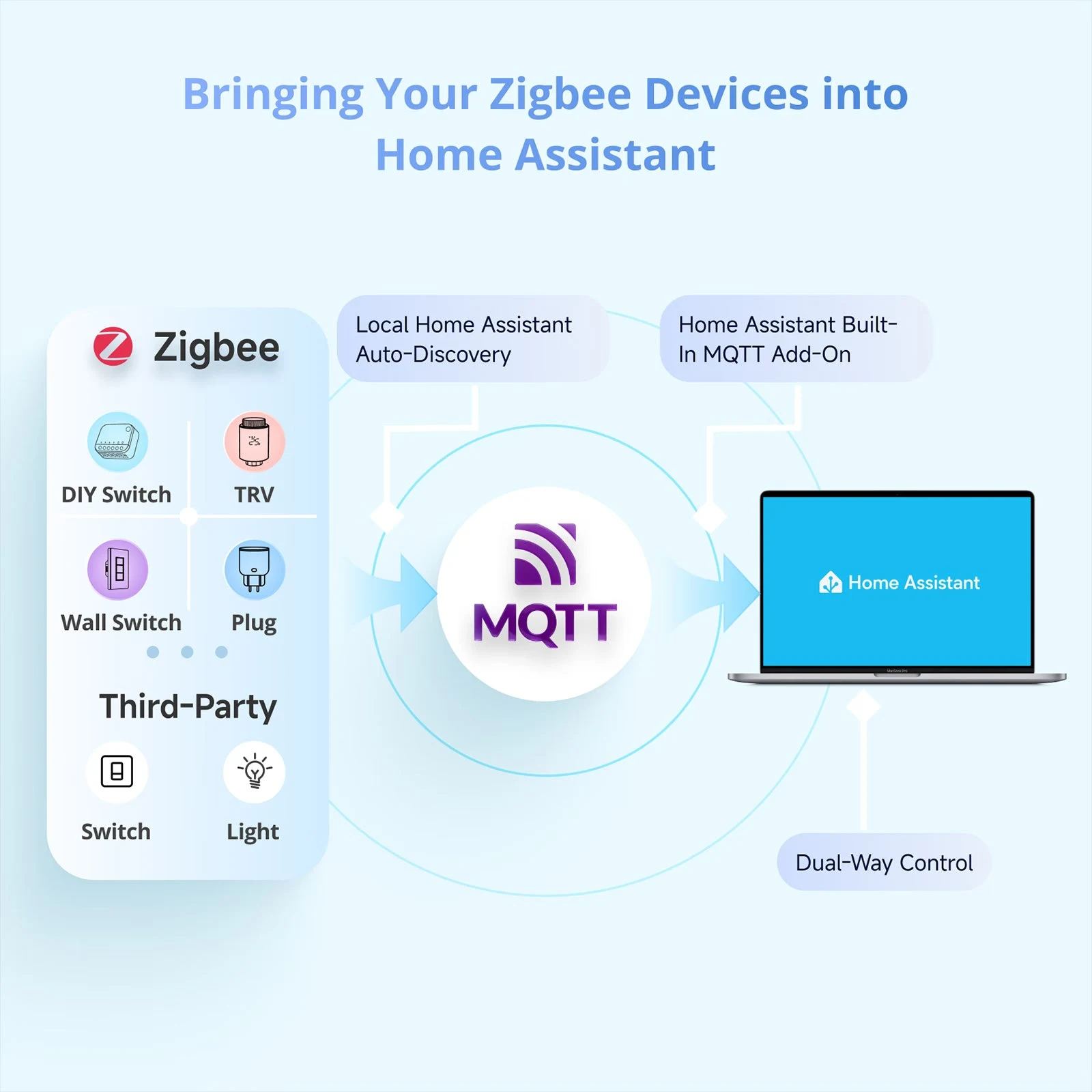

Current manufacturer documentation describes installing the Home Assistant app through F-Droid and using the panel as a dashboard client. A separate configured Home Assistant server remains necessary. Available integrations and Matter bridge support depend on firmware and supported device types, so an intended dashboard and device list should be checked together before ordering. Router mode has different capabilities from hub mode.

The panel contains no load relays. It cannot directly replace a conventional switch’s electrical switching function. A qualified installer should check mains supply, neutral, back-box dimensions and the separate actuator arrangement. Include the installation location, existing wiring and preferred finish when asking Smartify for a quotation.

Key specifications

• Models: NSPanel120PW / NSPanel120PB
• Display: 4.7-inch touchscreen
• Resolution: 750 × 1334 pixels
• Input rating: 100–240 V AC, 50/60 Hz, 0.15 A maximum
• Wireless: 2.4 GHz Wi-Fi 802.11 b/g/n; Zigbee 3.0
• Dimensions: 122.5 × 74.5 × 39.5 mm
• Operating temperature: 0–40°C
• Operating humidity: 5–90% RH, non-condensing
• Load relays: None; separate compatible actuators required
• Home Assistant: Dashboard client; separate Home Assistant server required
• Warranty: Regional coverage and terms confirmed with quotation

Availability and enquiries

Out of stock at Smartify. Enquire to register interest, check compatibility or discuss installation and alternatives. Price, sourcing, regional version, accessory contents and warranty will be confirmed before an order. No restock date is promised.
