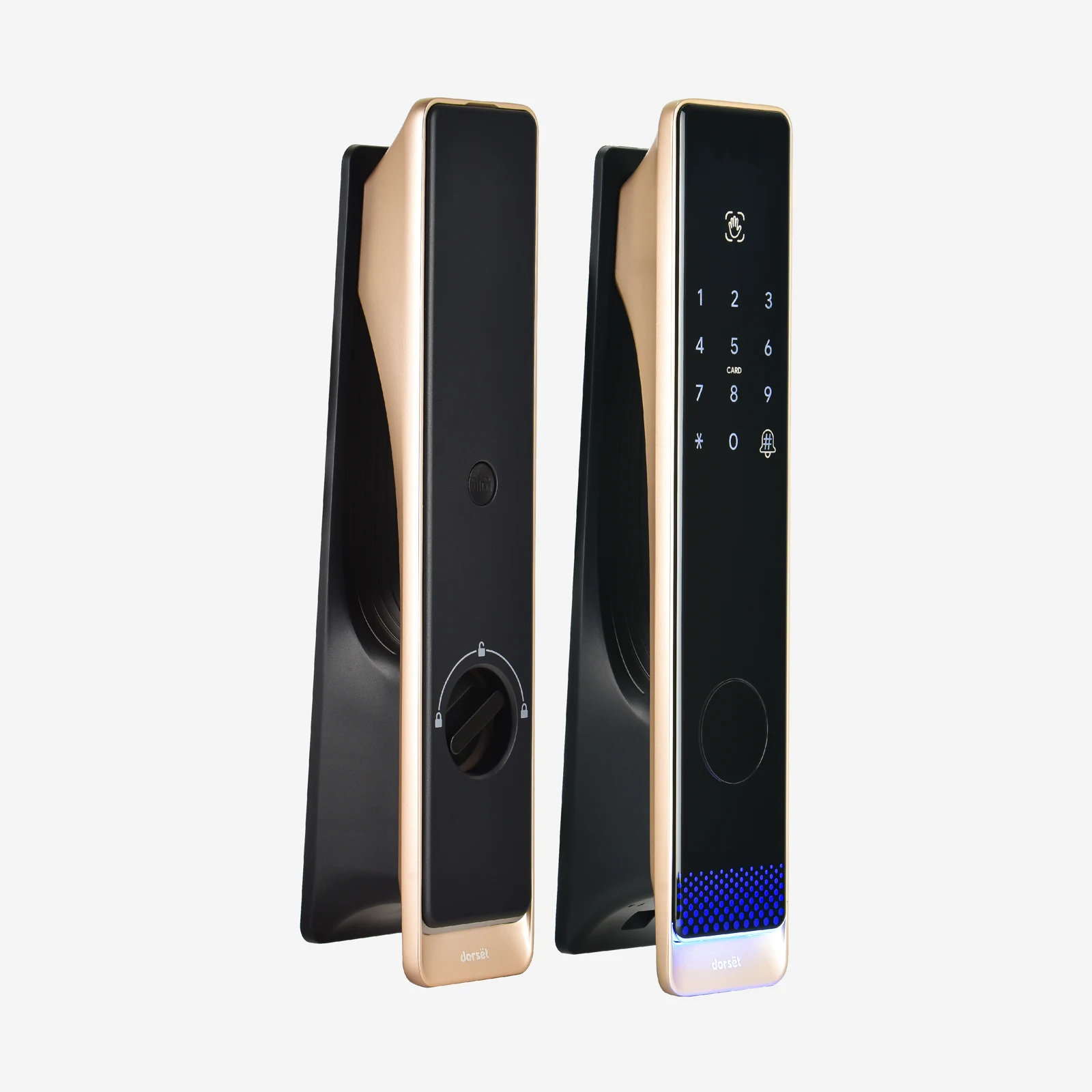

Dorset VOGUE DG 404 Push-Pull Digital Door Lock

Dorset VOGUE DG 404 Push-Pull Digital Door Lock

Dorset VOGUE DG 404 combines push-pull operation with fingerprint, card and connected access. This enquiry listing requires a door survey before hardware and installation can be confirmed.

Push-pull operation for the main entrance

The HD wide-angle camera and dual authentication add viewing and access options. Assess how these fit the entrance alongside the physical opening movement.

Check the push-pull movement and clearance

A push-pull lock changes how the entrance is operated, so check the movement of the door and the space around the handle as part of the survey. Supply the door thickness, opening direction, edge photographs and strike-plate details. Test the proposed arrangement against adjacent walls or fittings before deciding that it suits an existing entrance.

Decide how dual authentication should be used

DG 404 lists dual authentication alongside fingerprint, card and PIN access. Ask the installer to explain the supported credential combinations and demonstrate the selected arrangement. Agree how residents will enter and how credentials will be removed when no longer needed. Test automatic locking and privacy mode as well as unlocking, with mechanical-key access covered during handover.

Commission the camera and network separately

Check the wide-angle camera’s view from the intended mounting position, including what appears beyond the immediate doorway. Dorset lists Wi-Fi mobile access and optional video-door-phone or home-automation compatibility; confirm the app, interface and accessories for the exact installation. Native Matter, Zigbee, Apple Home or Home Assistant compatibility is not established by the presence of Wi-Fi.

Key specifications

• Model: DG 404
• Lock format: Push-pull
• Access methods: Fingerprint, RFID, PIN, mechanical key and Wi-Fi mobile access
• Enrolment capacity: Up to 100 fingerprints and 100 RFID credentials
• Connected access: Wi-Fi mobile access
• Smart features: HD wide-angle camera and dual authentication
• Locking modes: Automatic locking and privacy mode
• Integration: Optional video-door-phone/home-automation compatibility; installation-specific

Frequently asked questions

Does DG 404 offer face recognition?

Face recognition is not part of the sourced DG 404 specification here. Its listed everyday credentials include fingerprint, RFID and PIN.

What does dual authentication require?

Have the installer confirm the supported combinations and demonstrate the chosen mode. Do not assume a particular pairing from the feature name alone.

Can it replace an existing handle lock?

A door survey is needed. Check cut-outs, frame alignment and clearance for push-pull operation before agreeing the installation scope.

Availability and enquiries

Out of stock at Smartify. Enquire to register your interest or discuss an available alternative. Availability, price, regional version and warranty will be confirmed before any order; no restock date is promised.

Share your existing devices and installation details so Smartify can check the intended setup before quoting.

Manufacturer product information
